Nickel in elemental form or alloyed with other metals and materials has made significant contributions to our present-day society and promises to continue to supply materials for an even more demanding future. Nickel has always been a vital metal for a wide variety of industries for the simple reason that it is a highly versatile material that will alloy with most other metals. Nickel is a versatile element and will alloy with most metals. Nickel alloys are alloys with nickel as principal element. Complete solid solubility exists between nickel and copper. Wide solubility ranges between iron, chromium, and nickel make possible many alloy combinations. Its high versatility, combined with its outstanding heat and corrosion resistance has led to its use in a diverse range of applications; such as Aircraft gas turbines, steam turbines in power plants and its extensive use in the energy and nuclear power markets.

High Nickel Alloys Products

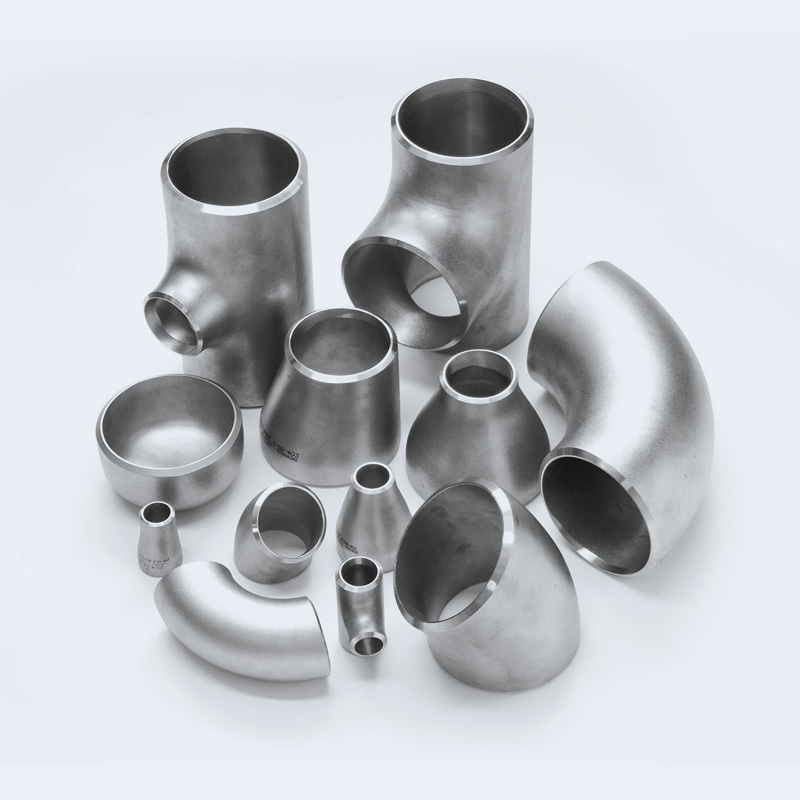

Pipe Fittings

Seamless, Welded

Pipe Fittings

Seamless, Welded

Elbow, Tee, Cross, Reducer, Bend, Stub End

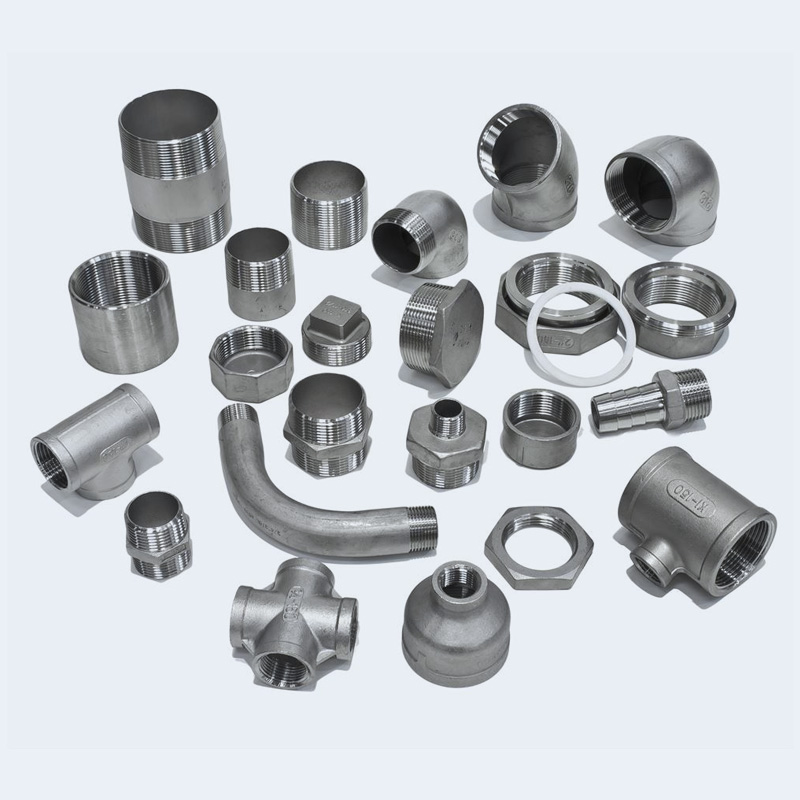

Forged Fittings

Socket weld, Threaded

Forged Fittings

Socket weld, Threaded

Elbow, Tee, Cross, Coupling, Olets, Union, Bushing

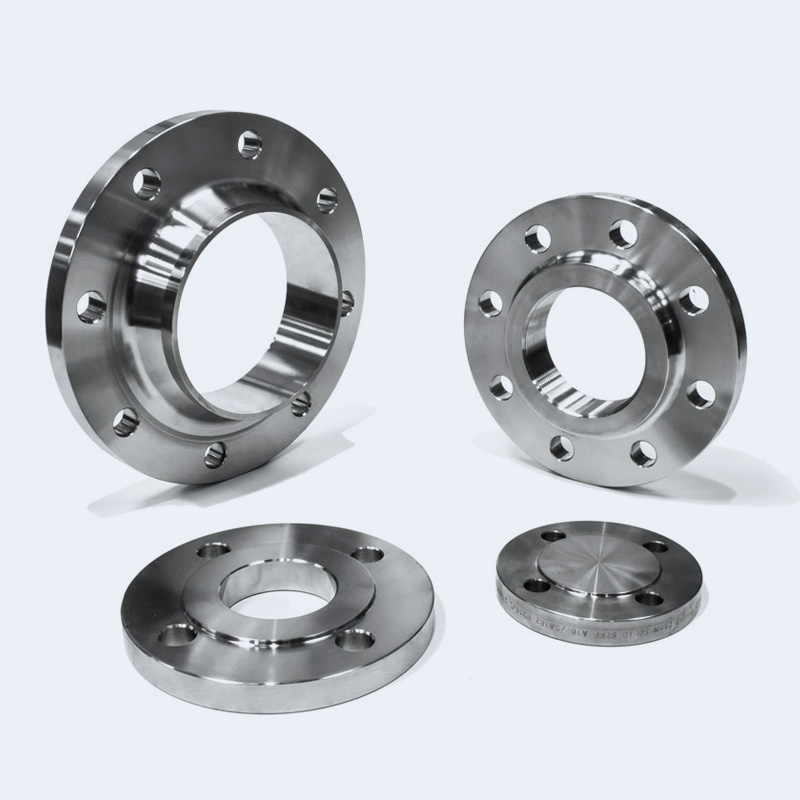

Flanges

Forged, Plate

Flanges

Forged, Plate

SORF, WNRF, BLRF, SWRF

Technical Properties of High Nickel Alloys

Alloy name UNS % Ni % Cr % Fe % Mo % Cu % Co % Other
200 N02200 99 min
400 N04400 65 32
B-2 N10665 68   2 28
70-30 N06008 70 30
C-Grade N06006 60 16 bal
600 N06600 76 16 8
601 N06601 60 23 bal       Al - 1.3
X-750 N07750 70 15 7

Ti - 2.5

Al - 0.7

Nb - 1.0

825 N08825 42 21 25 3 2
G-3 N06985 bal 22 20 7 2
800 N08800 32 21 45       W - 3.5
C-276 N10276 bal 15 5 16
C-22 N06022 bal 21 4 13
59 N06059 bal 23 1.5 max 16
C-2000 N06200 bal 23 3 max 16 1.6
686 N06686 bal 21 2 max 16     W - 3.7
617 N06617 44.5 min 22 3 max 9   12
Grade Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
Alloy 200 8.9 g/cm3 1446 °C (2635 °F) Psi – 67000 , MPa – 462 Psi – 21500 , MPa – 148 45 %
Alloy 400 8.8 g/cm3 1350 °C (2460 °F) Psi – 80000 , MPa – 550 Psi – 35000 , MPa – 240 40 %
Alloy 600 8.47 g/cm3 1413 °C (2580 °F) Psi – 95,000 , MPa – 655 Psi – 45,000 , MPa – 310 40 %
Alloy 800 7.94 g/cm3 1385 °C (2525 °F) Psi – 75,000 , MPa – 520 Psi – 30,000 , MPa – 205 30 %
Alloy C22 8.69 g/cm3 1399 °C (2550 °F) Psi – 1,00,000 , MPa – 690 Psi – 45000 , MPa – 310 45 %
STANDARD WERKSTOFF NR. UNS GOST AFNOR JIS BS EN
Nickel 200 2.4066 N02200 НП-2 N-100M NW 2200 NA 11 Ni 99.2
Monel 400 2.4360 N04400 МНЖМц 28-2,5-1,5 NU-30M NW 4400 NA 13 NiCu30Fe
Inconel 600 2.4816 N06600 МНЖМц 28-2,5-1,5 NC15FE11M NCF 600 NA 13 NiCr15Fe
Incoloy 800 1.4876 N08800 ЭИ670 Z8NC32-21 NCF 800 NA 15 X10NiCrAlTi32-20
Hastelloy C22 2.4602 N06022 NW 6022 NiCr21Mo14W
